Product Description

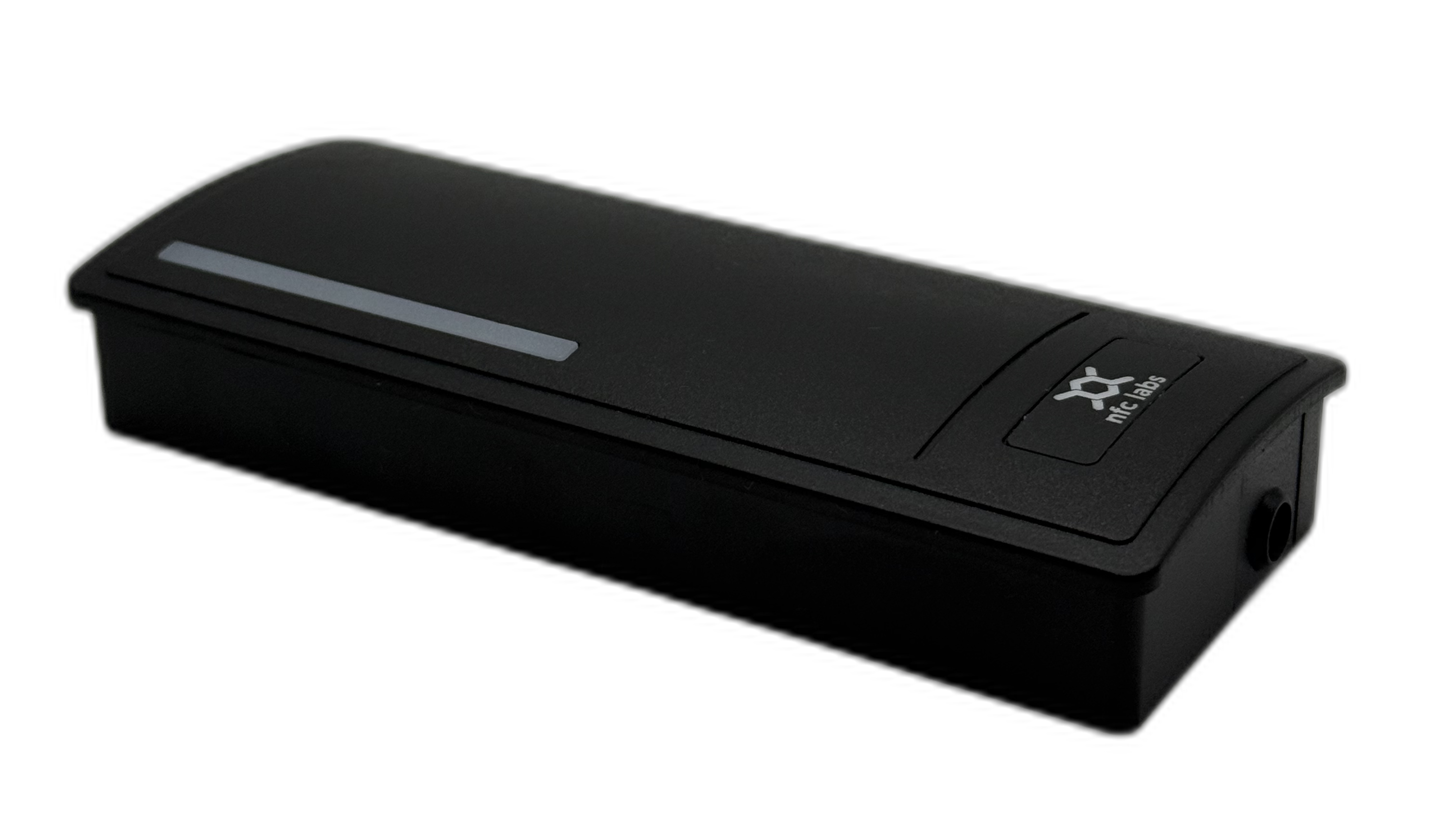

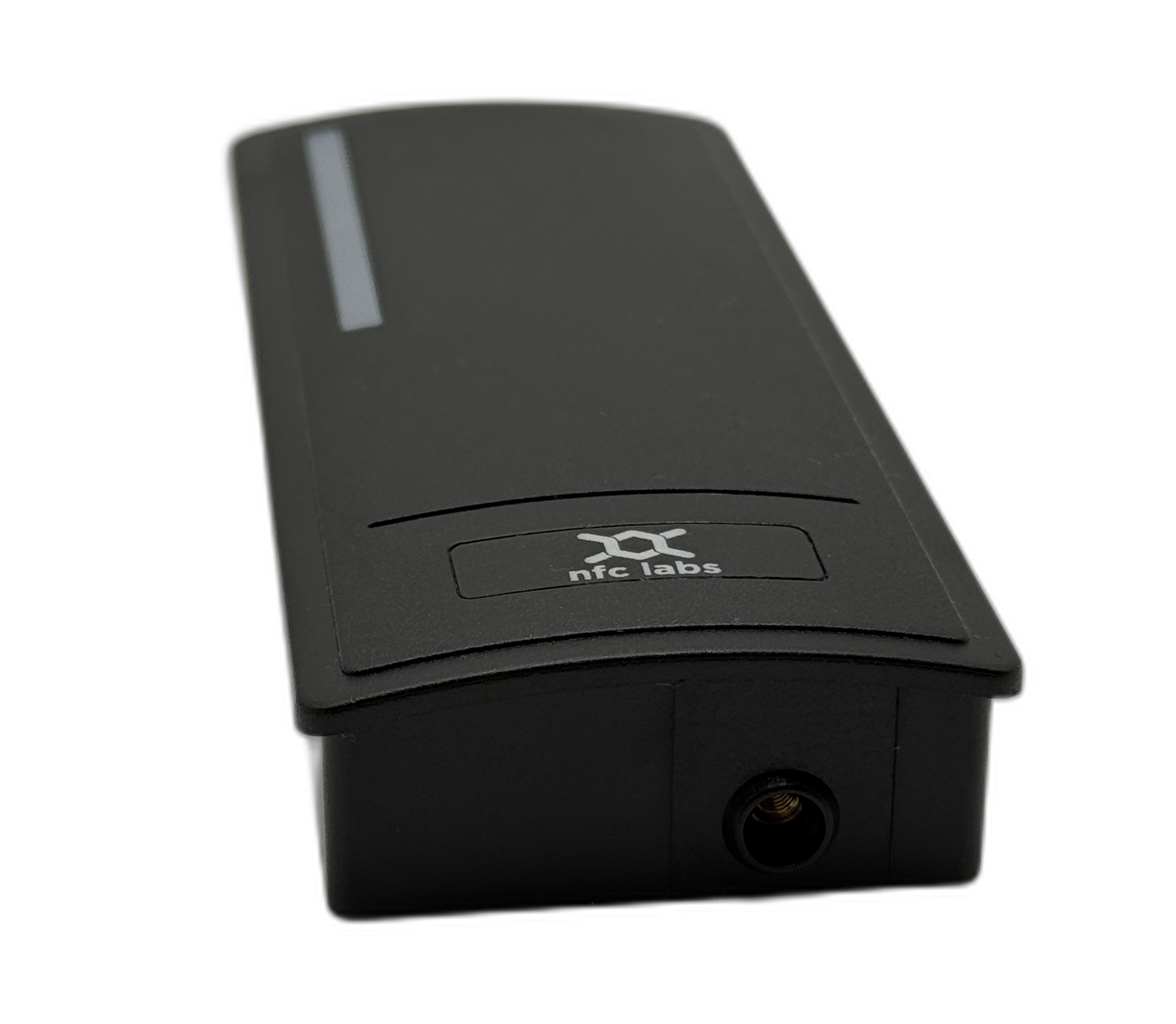

This wall-mounted identification reader combines NFC and Bluetooth technologies to provide flexible user authentication for modern access control systems. The device reads both standard 13.56MHz RFID/NFC cards and mobile phones (Android/iPhone), offering a "habit-changing" approach to identification that reduces reliance on physical cards.

The reader features advanced security through mobile key technology, where each transaction between the mobile phone and reader is unique and encoded with a new security key, ensuring high-level data protection.

Technical Specifications

• Power Supply: 9-24V DC
• Power Consumption: < 50mA
• Dimensions: H120 × W48 × T20mm
• Weight: 170g
• Color: Black
• Operating Temperature: -30°C to +50°C
• Relative Humidity: 0% to 98%
• IP Rating: IP66

Connectivity & Protocols

• Frequency: 13.56MHz (RFID), 2.4GHz (BLE)
• Wiegand Format: 34/58 bits (default), 32/56 bits (optional)
• Reading Protocol: 13.56MHz Mifare type (ISO14443A) - UID 7 bytes/4 bytes
• Reading Distance: 2 to 10 cm (depending on identifier)
• Indication: 3-color LED

Wire Connections

• Red: +12V (9-24V)
• Black: GND
• Green: Wiegand D0
• White: Wiegand D1
• Orange: LED (when short with GND)
• Blue: RS 485 B (OSDP)
• Brown: RS485 A (OSDP)

Key Benefits

Dual Technology Advantage: Supports both traditional RFID cards and modern mobile phone authentication, providing flexibility for different user preferences and scenarios.

Enhanced Security: Mobile key technology with unique, encrypted transactions ensures superior data protection compared to static card-based systems.

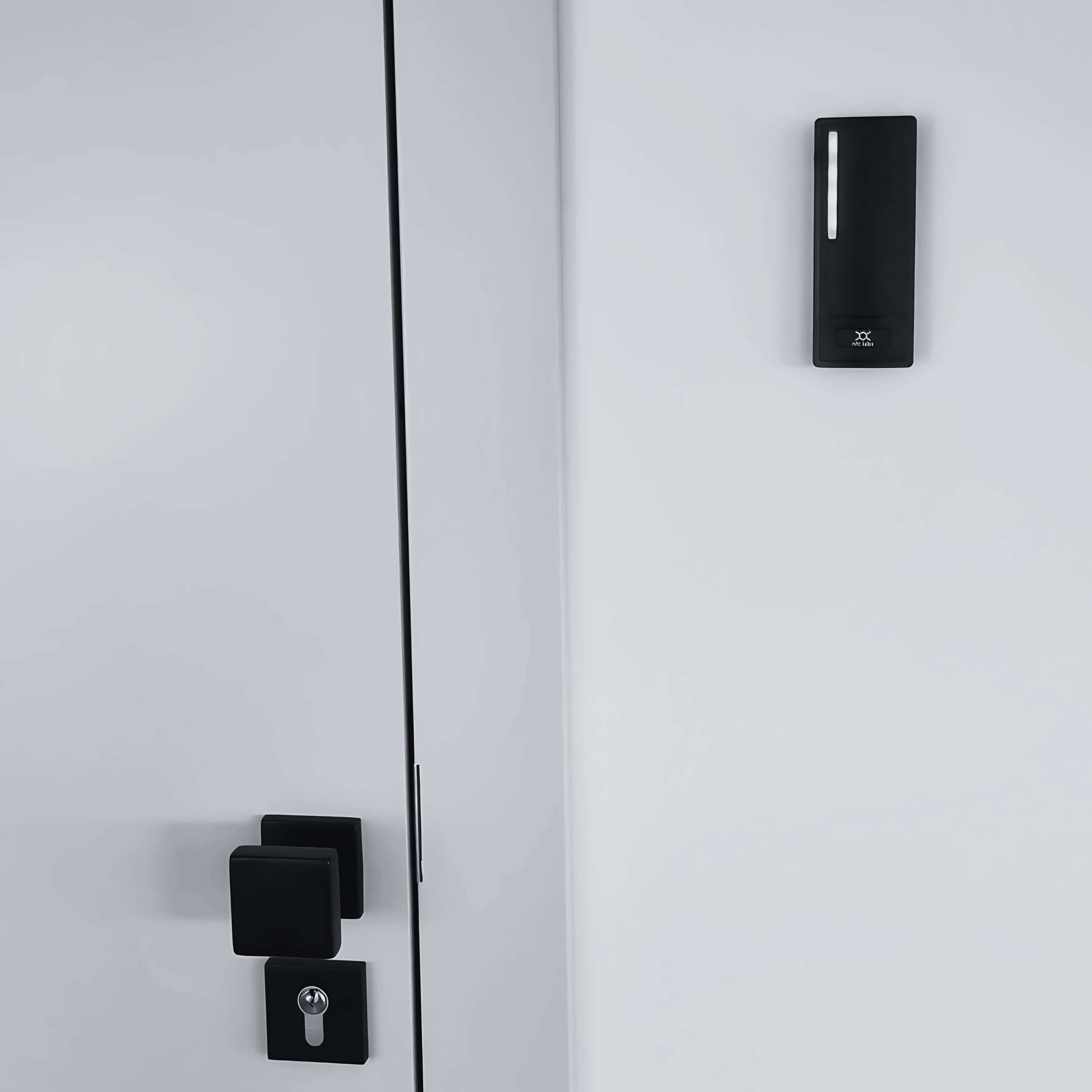

Weather Resistant: IP66 rating and wide operating temperature range (-30°C to +50°C) make it suitable for both indoor and outdoor installations.

Easy Integration: Standard Wiegand and OSDP protocols ensure compatibility with existing access control systems.

Compact Design: Sleek wall-mounted form factor (120×48×20mm) fits discretely in any environment while maintaining professional appearance.

Low Power Consumption: Efficient design with less than 50mA power consumption reduces operational costs and enables battery backup integration.

Future-Ready: NFC and Bluetooth Low Energy support positions the system for emerging mobile-first authentication trends.
