Product Description

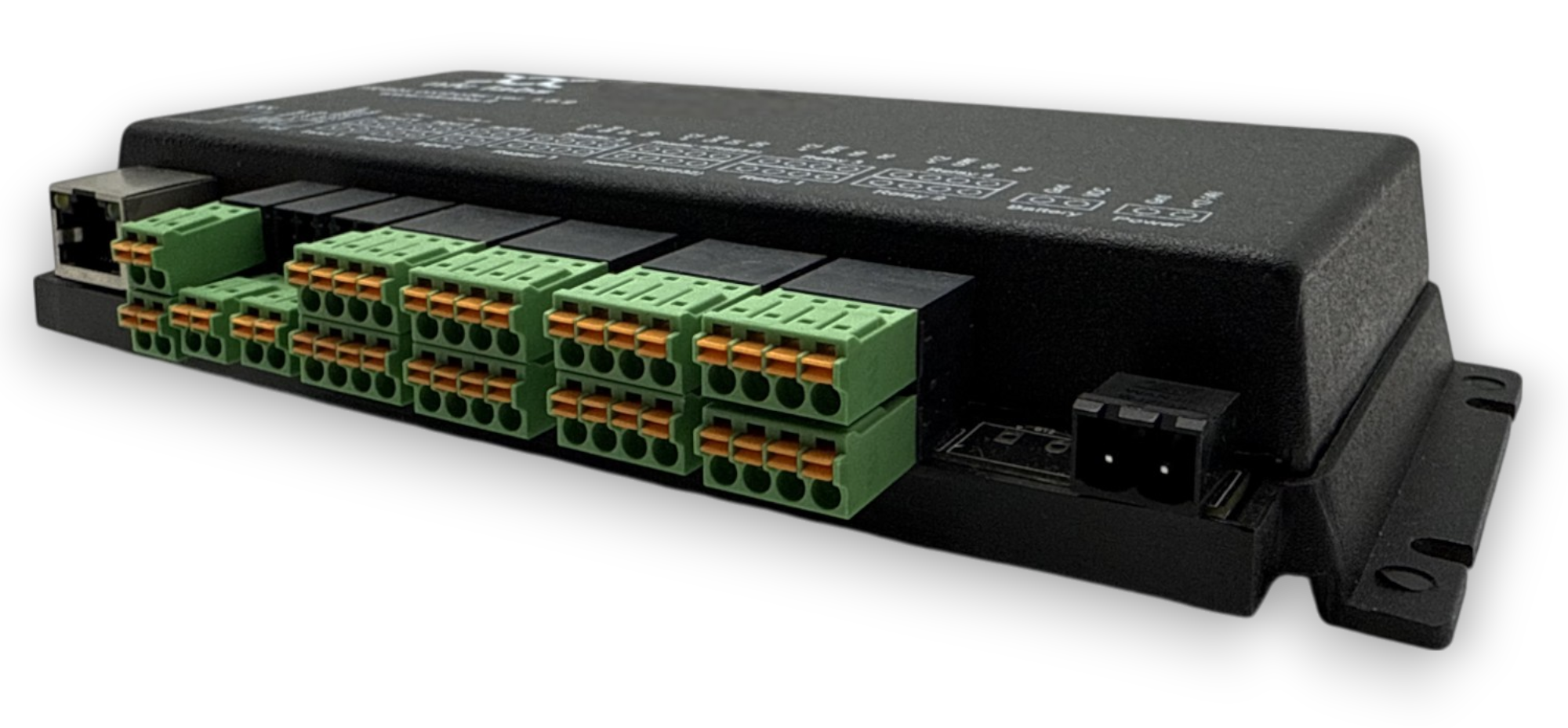

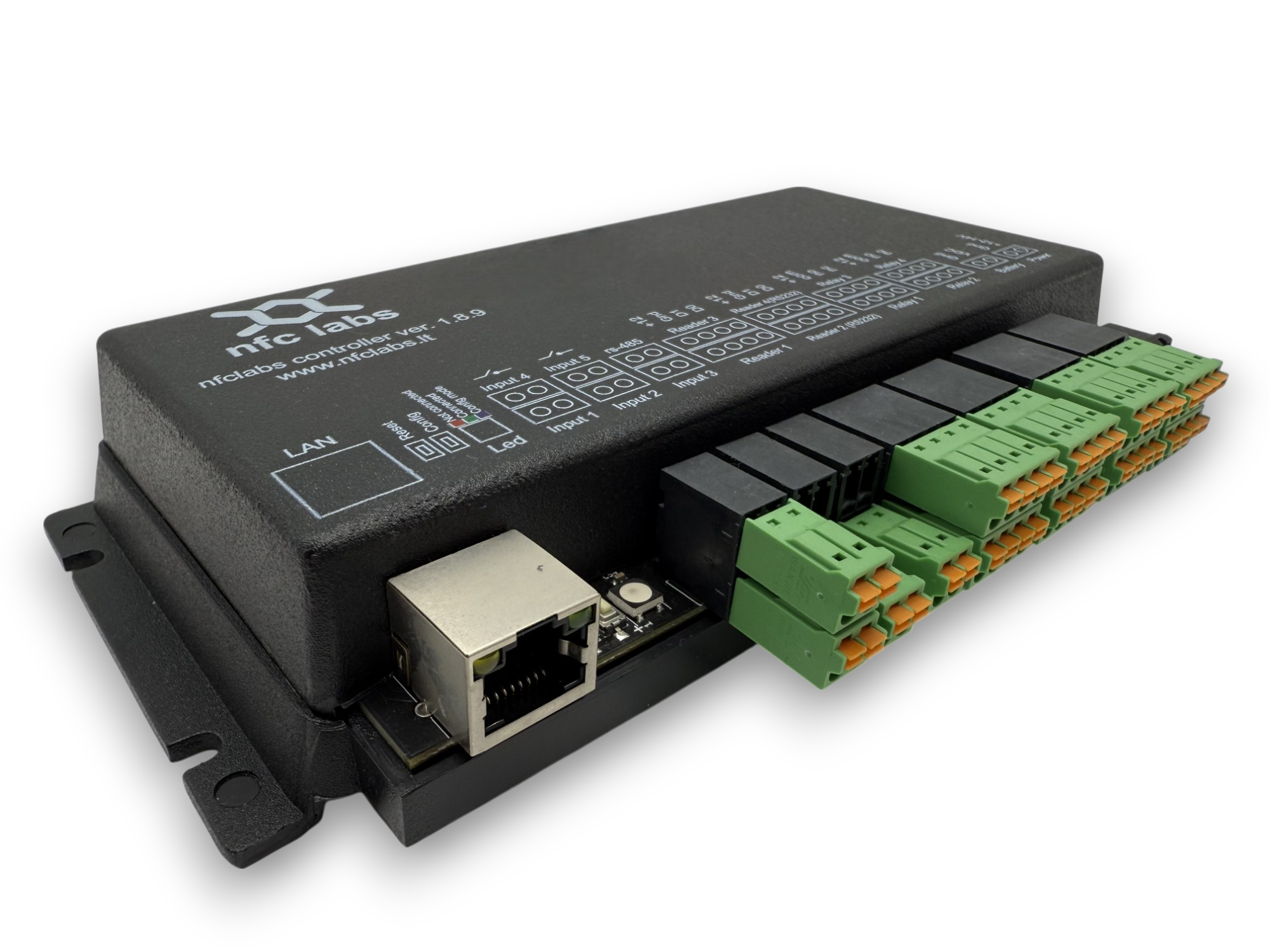

The NFCLabs Access Control Controller (Version 1.8.9) is a comprehensive IoT-enabled access control system designed to manage four doors with independent user lists. This cloud-platform controller manages doors, turnstiles, gates, and other controlled equipment while providing a complete web-based administration environment for monitoring events and managing single or multiple access control points.

The controller operates both offline and online, with seamless integration capabilities for third-party software and hardware systems through MQTT protocol. It includes an intuitive web-based configuration interface accessible directly via WiFi/LAN or through the cloud platform.

Technical Specifications

• Power Supply: 12-14V DC with 12V battery backup
• Power Consumption: Up to 200mA
• Dimensions: 194mm × 83.5mm × 19.6mm
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -40°C to 80°C
• Internal Protection: 2A short circuit protection

Connectivity & Communication

• Network: WiFi (2.4GHz), LAN (10/100 Mbps)
• Operation Modes: Offline/Online (API)
• Protocols: REST API, MQTT API
• Additional Interface: 1x RS232

Memory & Storage

• User Capacity: Up to 10,000 users
• Event Storage: Up to 50,000 events
• Local Processing: Full offline capability with cloud synchronization

Reader Support

• Wiegand Readers: 4x RFID/PIN readers (Wiegand 26-66 protocol)
• OSDP Readers: 16x readers supporting OSDP V2 protocol
• NFCLABS Wiegand Protocol: Feedback signal to readers

Input/Output

• Relays: 4x with NO/NC contacts
• Input Signals: 5x configurable input signals
• Indication: Status LED (green/red/blue), audible signals

Key Benefits

Multi-Door Management: Controls up to four doors simultaneously with independent user access lists, providing comprehensive access control for medium to large facilities.

Hybrid Cloud/Local Operation: Seamlessly operates both online (cloud-connected) and offline modes, ensuring continuous access control even during network outages with local storage of 10,000 users and 50,000 events.

Comprehensive Reader Support: Compatible with both traditional Wiegand (26-66 protocol) and modern OSDP V2 readers, supporting up to 4 Wiegand or 16 OSDP readers for maximum flexibility.

Web-Based Administration: Complete browser-based configuration accessible directly via WiFi/LAN or through the cloud platform, enabling remote management of single or multiple controllers.

Advanced Integration Capabilities: REST API and MQTT protocol support enables seamless integration with third-party software systems, building management platforms, and IoT ecosystems.

Robust Power Management: 12V battery backup ensures continuous operation during power outages, while 2A short circuit protection safeguards the system and connected devices.

Flexible Signal Management: Configurable relay timing (1 millisecond to infinite), input signal level control (normally high/low), and customizable input signal actions provide precise control over connected hardware.

Real-Time Event Monitoring: Comprehensive logging and real-time event tracking through the web interface, with cloud synchronization for centralized monitoring across multiple locations.

Professional Installation Support: Clear wiring diagrams and comprehensive documentation ensure reliable installation and configuration by security professionals.

Scalable Architecture: Single controller can manage multiple access points, while the cloud platform enables centralized management of dozens of controllers across multiple facilities.
